An Electronic Textiles Unit in Exploring Computer Science
In Fall 2018, Exploring Computer Science will release an additional curriculum option for Unit 6, Electronic Textiles. Electronic textiles (e-textiles) are articles of clothing, accessories or home furnishings with embedded electronic and computational elements. In classrooms, students work individually or in groups to make a variety of e-textile projects such as cards, bracelets, collaborative murals, clothing and toys that sparkle, connect and interact.

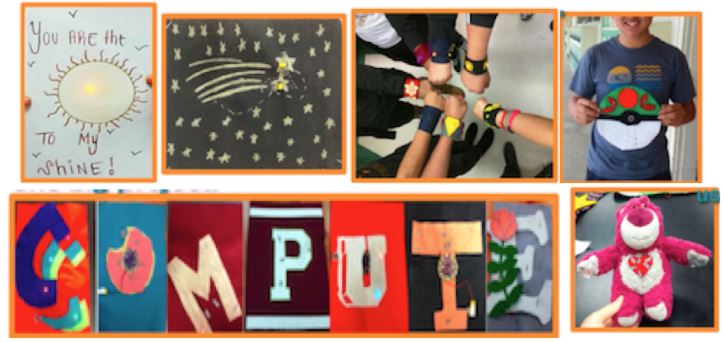

Gallery of Electronic Textiles Designed and Crafted by High School Students in LAUSD (upper row) Greeting card, Detail from a collaborative mural, Wristbands, T-shirt with interactive patch (lower row) Letters from a collaborative mural, Interactive toy in Human Sensor Project
To make e-textiles, students first imagine the project they wish to make, then design circuits that connect a programmable Arduino-based microcontroller with sensors and actuators such as lights and speakers. After stitching the circuits with conductive thread, students program their microcontrollers to read sensor data, blink their lights or play music.
Materials and Controllers used in Unit 6: Electronic Textiles

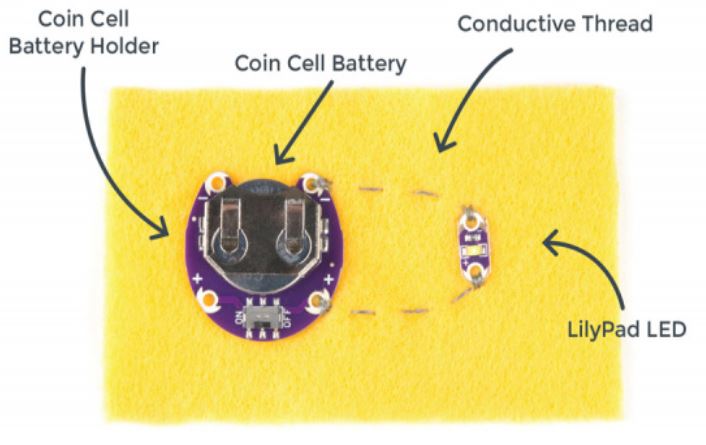

(left) A simple circuit using LEDs,conductive thread and coin cell battery and holder (image by Sparkfun)

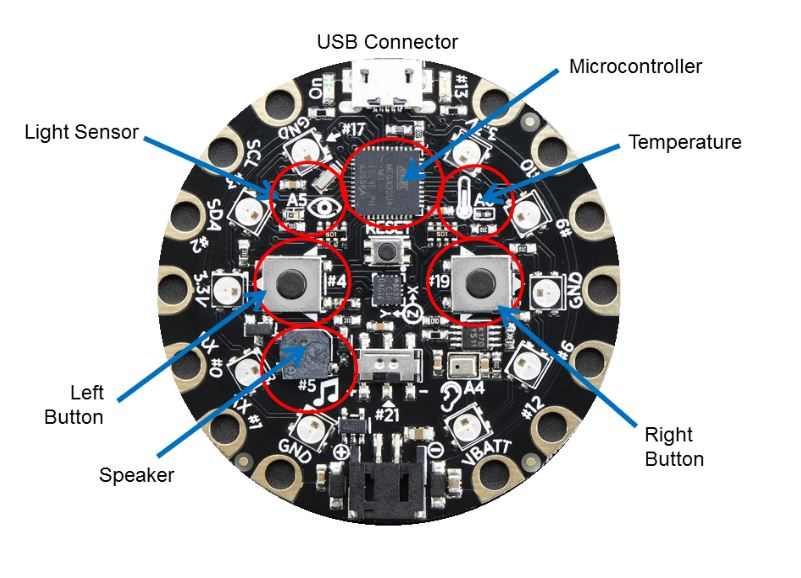

(right) The sewable microcontroller Circuit Playground (image by AdaFruit)
Unit 6: Electronic Textiles consists of four open-ended, hands-on projects requiring students to create artifacts with increasingly challenging computational concepts, use high and low-tech materials hone their crafting and designing skills, and troubleshoot malfunctioning projects.
Projects
Description of Electronic Textiles
Key Concepts and Materials
Single circuit project design: Create a simple paper circuit greeting card that includes one LED. Introduce the concept of aesthetic design and personalization.
- Simple circuit
- Understanding polarity
- Materials: LEDs, copper tape (wire), paper
Simple wearable project: Create a wristband with three LEDs in parallel and a switch that turns on the project when the ends of the wristband are snapped together.
- Parallel circuit, switch
- Designing and reading circuit diagrams
- Three-dimensional project
- Deconstruction
- Materials: Conductive thread, LEDs, battery and holder, fabric
Collaborative project: As a class create a mural, with each panel made by two students. Each panel must have five independently programmable LEDs and two switches, allowing for four blinking light patterns.
- Programming for digital input: Sequences, conditionals, embedded conditionals or Boolean statements
- Collaborative work & division of labor
- Materials: Conductive thread, LEDs, fabric, microcontroller
Capstone project: Create a project with two aluminum foil patches that act as a sensor when both are touched by a person. Program four+ lighting patterns based on different sensor readings.
- Sensor design (handcrafted)
- Programming for analog input: operators, sensor range, Boolean statements
- Materials: Conductive aluminum foil, human body, LEDs, microcontroller, fabric
Unit 6: Electronic Textiles will include a curriculum guide outlining all project activities with detailed information on: how computational concepts and practices are introduced through making e-textile projects, how students can document and reflect on their learning by creating digital portfolios, how the e-textiles unit builds on other units within ECS, and how e-textiles as a topic connects to CS standards. In addition, we will provide a technical guide for teachers containing tips for constructing and troubleshooting e-textiles projects and a resource guide with shopping lists and retail sources for purchasing materials needed for the unit.
For more information on the research behind the design and classroom implementation of Electronic Textiles, please check out this link.
